Why do we say that the ARGON Gyro is the safest ultralight aircraft?
Firstly, we believe that the new-generation, professionally designed and constructed, gyrocopters are inherently safer than fixed wing and helicopter aircraft of similar size. Why? Because a gyrocopter can descend vertically under full control and land in just a few metres of space, without the complexity or cost of a helicopter. So a new-generation gyro always provides more options in case of emergency than a fixed-wing and is less likely to experience a technical failure than a helicopter.
So why is the ARGON the safest gyrocopter?
Most gyrocopters are built around a metal chassis, to which everything else is mounted, like cars were until recent years. The ARGON is different. Using the latest carbon fibre technologies, the cabin of the ARGON is an engineering work of art. It is constructed around a light but immensely strong monocoque protective shell, like a formula one car. This shell provides both a crush-proof protective enclosure for the crew and allows all the other components to be directly mounted to it, without the weight of a chassis or additional structural frame.
This provides a massive degree of safety for the crew in the event of any kind of accident, because the cabin is capable of withstanding loads that are many times the acceleration of gravity.
Monocoque fuselage construction means that forces are transmitted through the fuselage instead of via the rods and tubes of a frame. ARGON is one of the few gyrocopters in the world that uses monocoque construction, and it is now available in carbon-fibre, which offers unparalleled strength and low weight for safety and performance.

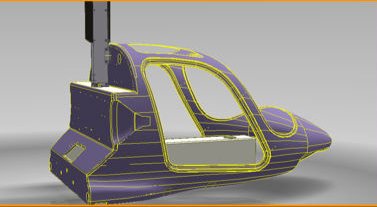

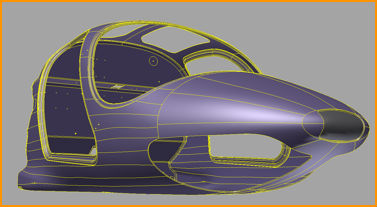

In the design process, sketches and drawings are transferred to Computer Aided Design (CAD) software, which then allows precise rendering from any angle and computational performance testing to check the ergonomics of the machine, and make rapid and cost-effective refinements, before even manufacturing a prototype.
Our cabin is also equipped with controlled crumple zones, just like a modern car. The most important is the nose of the cabin, which in the event of a collision, progressively absorbs the energy to protect the crew. Another important crumple zone is the bulkhead wall separating the cockpit from the engine compartment. It is a structure that is carefully reinforced with composite profiles. The ARGON cabin has also been designed with large pilots in mind, allowing even tall and wide individuals to feel comfortable. As a result, the ARGON offers better safety, cabin volume and comfort than any other gyrocopter in its class.
Ergonomics and ease of use, combined with ultra-modern technical solutions, lie at the core of ARGON. But at the same time, at Manufaktura, we have a very great respect for nature. Over millions of years, dating back to the dinosaurs and before, nature has evolved very effective ways to deliver strength and agility at the least weight and cost. The ARGON borrows from nature through biologically-inspired features such as the reinforcing ‘ribs’ in the cabin and the use of ‘honeycomb’ materials.
Take for example the seat. Made from carbon composite and foam-filled Kevlar, This design is able to save our spine in an accident. The seats can also “crumple”. Similarly, just as a blade of grass or a young, flexible sapling might survive a severe storm, whereas an old and strong tree might fracture and fall, nature has lessons for us about providing flexibility in structures that yield, rather than snap, under load.

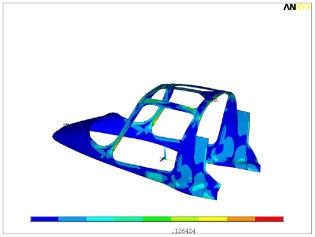

But the real test is the moment where theory meets practice, starting with the strength tests that are part of our rigorous certification procedure. Together with the Institute of Aviation at the Technical University of Warsaw, we conducted a comprehensive study of the strength of the cabin and associated components. This not only confirmed the expected strength, but to everyone’s surprise and delight, exceeded predictions.
In conclusion, the Argon cabin is the result of exploring leading edge technologies through hundreds of hours invested in analysis, testing and verification of the concept in practice, over 15 years of research and development. Looking at the finished design you can perhaps now appreciate that virtually nothing was left to chance; every item is the result of many hours invested in the project to achieve the maximum safety, comfort and performance at the most efficient cost.
The mast is a critical part of the structure. During the design process, engineers have to reconcile seemingly contradictory requirements, providing strength without sacrificing flexibility, firmly supporting the cabin with the lift from the rotors, while allowing the rotor blades to spin freely and to be angled in pitch and roll.
The mast must be very sturdy, because from it hangs the entire structure of the Gyrocopter, and yet at the same time there must be a safety zone to avoid serious injury in case of an unexpected collision of the rotor with an obstacle.
Using key design criteria and structural stress tests we developed a profile that is able to reconcile these seemingly contradictory tasks. Our design is able to withstand overload mast stresses of several times the force of gravity, while failing ‘gracefully’ with controlled and designed crumple zones in the event of even greater stresses. In the event of a severe accident, the mast breaks away, separating the spinning rotor from the cabin, avoiding injury to the crew.
The undercarriage is of simple design, directly connecting the wheels and cabin, seemingly nothing special. But in all great design, the most elegant solutions often appear simple! In fact, it is the fruit of many calculations, strength tests and prioritizing objectives to achieve the best active and passive performance, providing a smooth absorption of bumps over rough terrain, while offering great strength under many times the force of gravity in case of a heavy landing.
The Argon undercarriage is very wide, over 2.2m, a spacing unparalleled in other Gyrocopters. This is very important, because it provides a high degree of stability during taxiing, take-off and landing, much better than in narrower Gyrocopters. Also, the shape of the landing struts is slightly angled, to absorb energy in the event of a hard touchdown to reduce the transmitted stress to the cabin and crew.
1. More Cabin Space
The ARGON 915 Classic gives you a noticeably larger cabin than typical two-seat gyrocopters like the Cavalon and Niki, so you and your passenger travel in real comfort with room to spare. Step up to the ARGON GTL and you gain an additional 25 cubic feet of cargo volume over the Classic, opening up even more possibilities for what you can take with you.
Whether it is luggage, camping gear, cargo, survey and scanning equipment, or professional photo gear, ARGON models are built to carry more of what matters. Designed from the start to be functional and versatile, they oKer the cabin space and utility that other two-place gyrocopters simply cannot match

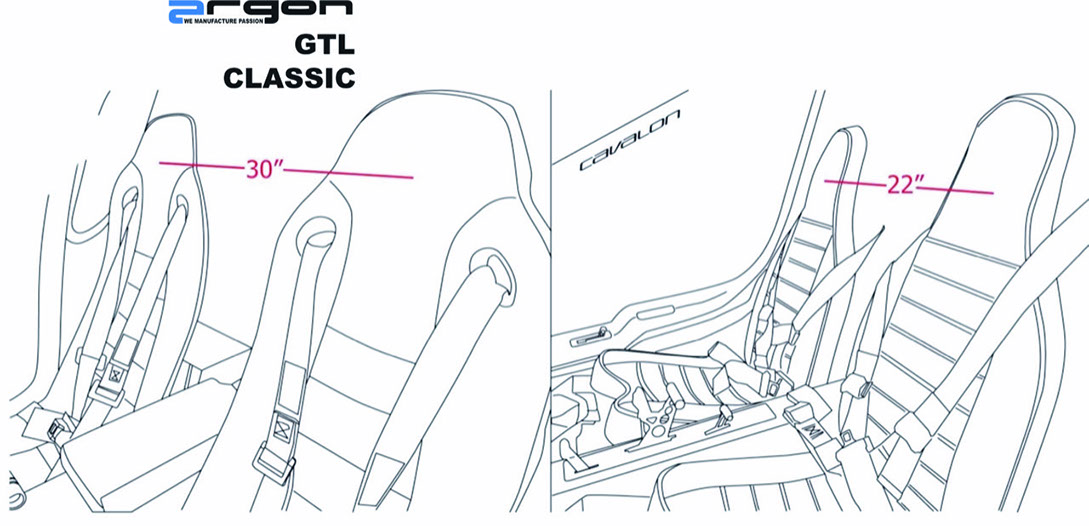

2. More Shoulder Room
The ARGON gyrocopters deliver superior shoulder room with a spacious 1.35mwide cabin that lets you and your passenger stretch out comfortably—no more elbow battles like in narrower competitors. Enjoy the added luxury of a padded armrest between seats for those long flights, blending comfort with smart design. A standout feature is the extra-wide center instrument tunnel, making maintenance a breeze by giving easy access to control cables and sensor wires— tasks that drag on for hours in the tight confines of a Cavalon take just minutes in our ARGON. This thoughtful engineering keeps you flying more and wrenching less, maximizing every adventure
3. Wider Wheelbase

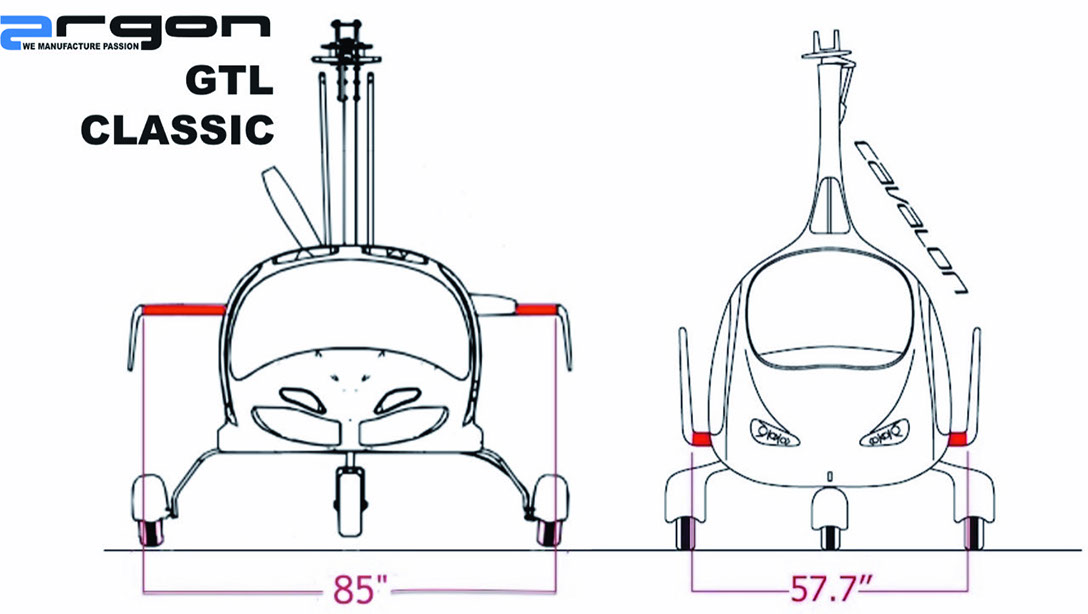

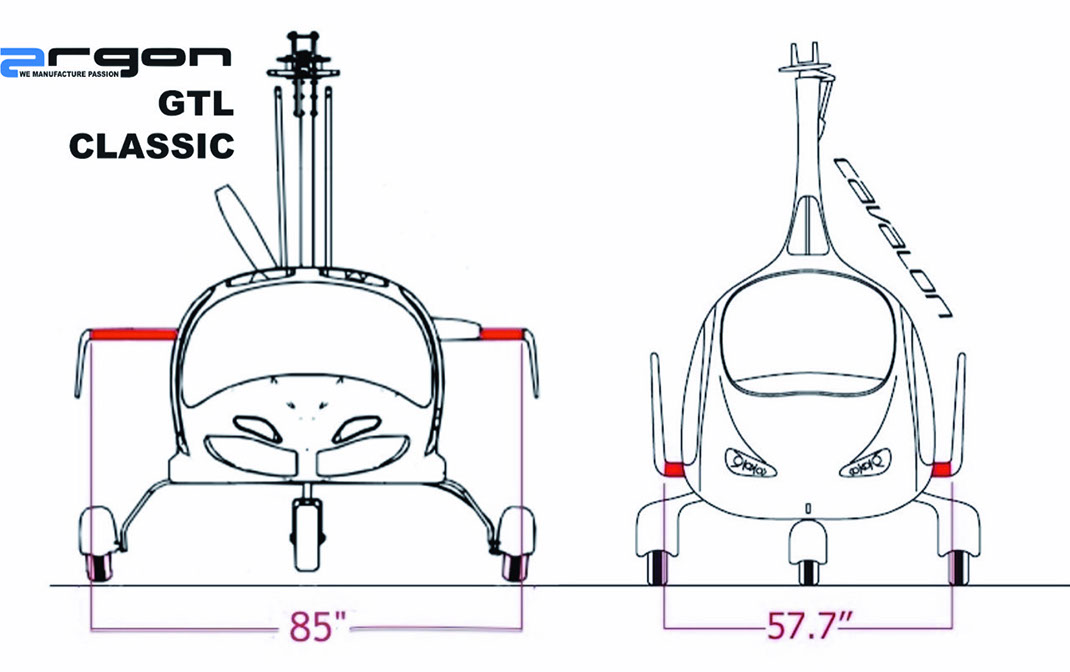

The ARGON gyrocopters feature a wider wheelbase that significantly enhances stability during taxiing, take-oK, and landing—especially on grass or uneven terrain. This broader stance allows you to confidently maneuver and make turns over rough fields without constantly worrying about your ground speed.
With the ARGON’s stable wheelbase, you get smoother handling on uneven surfaces, making your operations safer and less stressful, even when conditions are far from perfect. This design means greater control and peace of mind every time you take off or touch down
4. More Ground Clearance

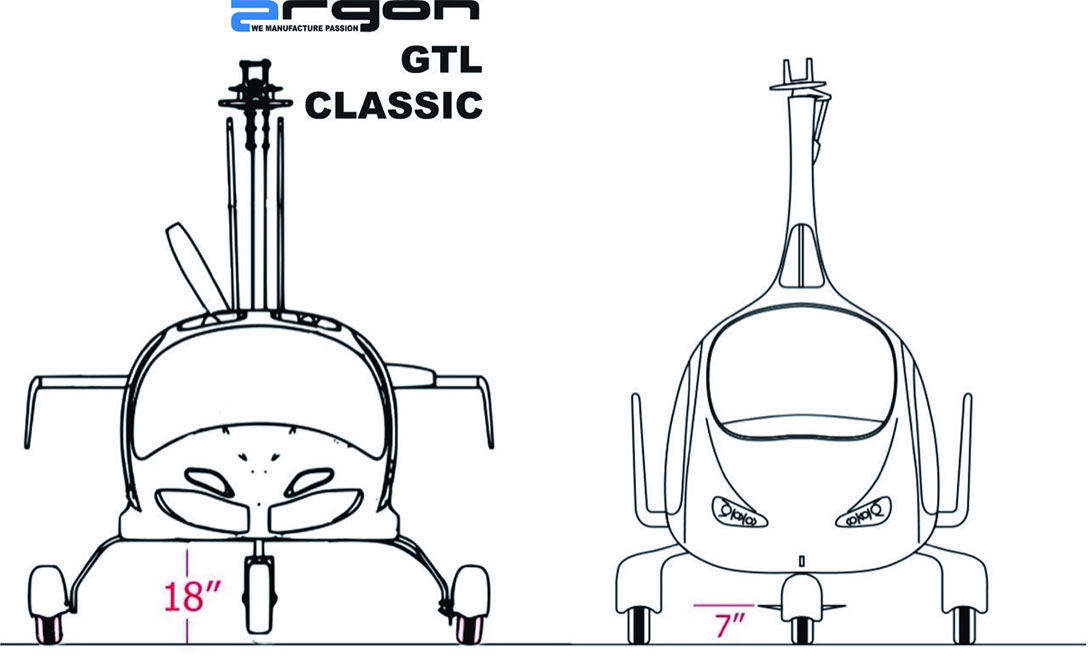

ARGON gyrocopters conquer grass landings and rough fields with ease, boasting more than double the ground clearance of competitors thanks to our taller landing gear and dual tail booms that stay well clear of obstacles. No more worrying about scraping or dragging—unlike single tail boom designs that dip dangerously low under the propeller and snag on uneven terrain.
This superior clearance means true versatility for real-world flying, letting you access remote sites confidently without perfect runways. Fly freer, land anywhere, and keep your adventures grounded in reliability

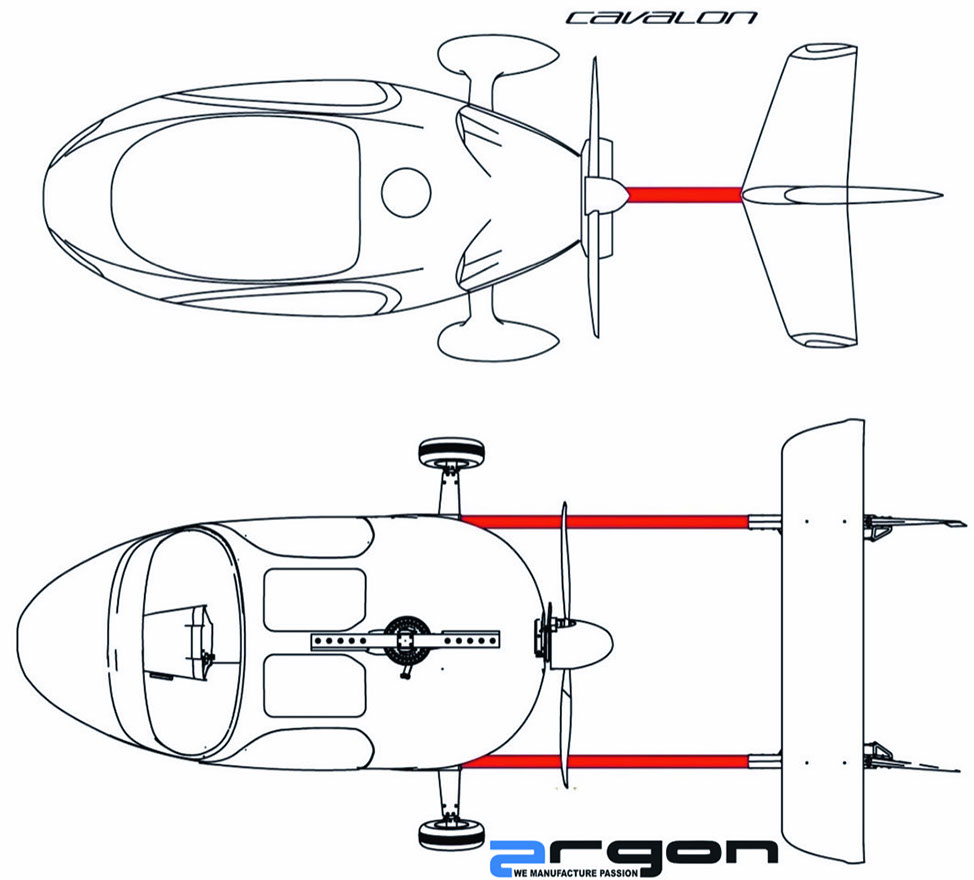

5. Dual Tail Booms
ARGON gyrocopters eliminate tail vibrations with our innovative dual tail booms— far superior to the competition’s single bent pipe that flexes and shakes under load, as proven by camera footage on a Cavalon. These two straight, robust booms deliver rock-solid stabilizers with virtually no vibration for smoother, more confident flights.
Plus, dual rudders provide authoritative control and precise handling that singleboom designs can’t match. Experience unmatched stability and performance that keeps you focused on the adventure, not the airframe
6. Wider Horizontal Stabilizer
ARGON gyrocopters conquer the classic “power pushover” issue—where engine thrust risks tipping the aircraft or causing porpoising—with our much wider horizontal stabilizer for unmatched stability. Unlike competitors that raise the cabin high for centerline thrust, creating tall, awkward designs, ARGON keeps things sleek and eKective.
Perfectly aligned with the propeller’s thrust centerline, this oversized stabilizer maximizes control and prevents rotor unloading, delivering the best solution on the market. Fly with supreme confidence, knowing every thrust stays rock-solid and responsive.
7. Much Greater Visibility

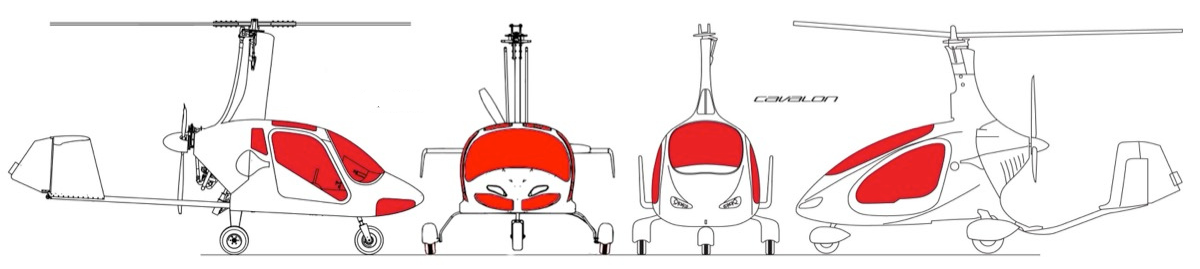

ARGON gyrocopters unlock unparalleled visibility that elevates every flight’s joy and utility, with a massive wraparound front windshield, floor windows for direct runway views below, roof panels, extended door glazing, and even rear windows for true 360-degree awareness. No other gyro matches this expansive glass design, letting you soak in surroundings like never before.
New pilots especially love the floor windows, which make judging landings intuitive and accelerate mastery of the craft. See more, fly smarter, and embrace the freedom of unmatched panoramas in every adventure.

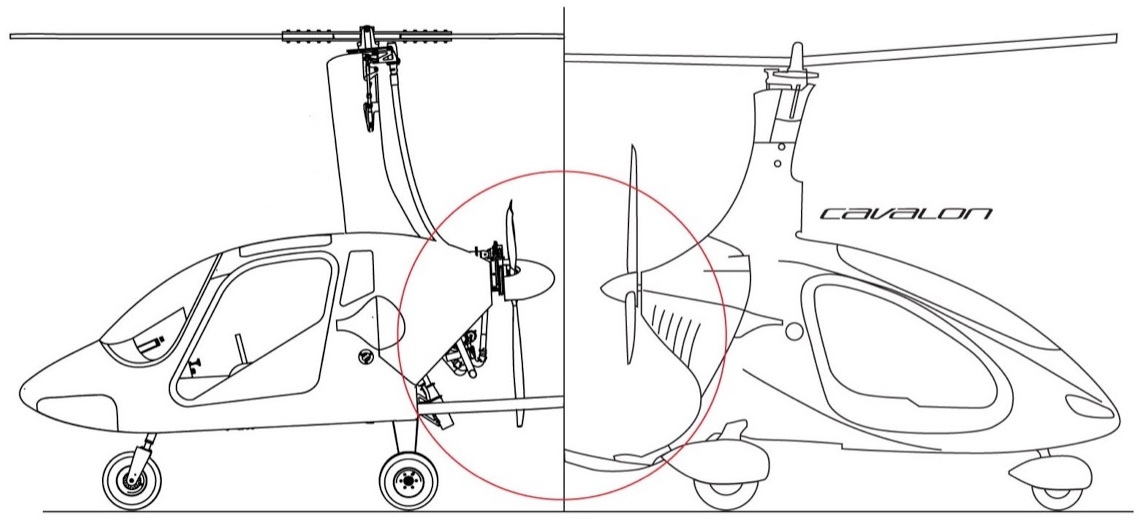

8. Engine Compartment
ARGON gyrocopters prioritize smart practicality over flashy streamlining with our partially open engine compartment design—sacrificing a sleek look for gamechanging advantages that the fully enclosed Cavalon can’t match. Say goodbye to heat buildup issues and endless frustration accessing tucked-away components like turbos, radiators, and oil coolers in their cramped cone.
Instead, enjoy instant visual checks on fuel filters and flow at a glance, plus eKortless servicing thanks to abundant space that makes adjustments a breeze. This real-world engineering keeps you flying longer with less downtime and maximum reliability.
